PC-4000 Pneumatic / Mechanical Chuck Components

More Info
torque independent core chuck
PC-4000 Shaftless Core Chuck

  1. Large core adapter assembly
  2. Steel springs
  3. Adapter seal plate.
  4. Gripping lugs
  5. Three-inch base chuck
  6. Piston chamber

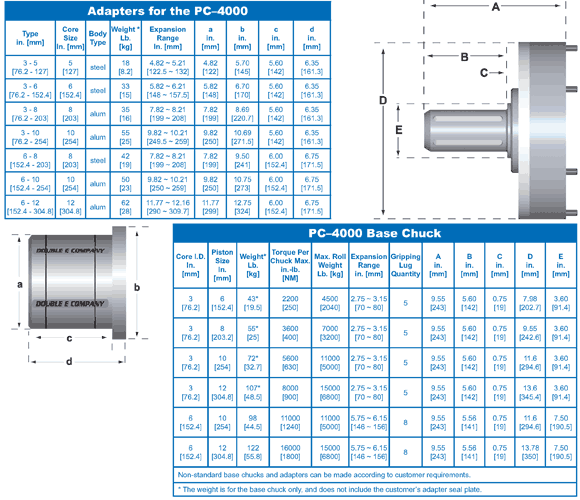

PC-4000 Specifications
The PC-4000 comes in a number of different sizes. Please refer to our specification chart. Click here
PC-4000 Synopsis
More information about the PC-4000 core chuck. Click here


mechanical chuck
DF-2000 Torque-Activated Core Chucks
The world's most popular shaftless core chuck expands to grip cores automatically when torque is applied. Click here
DF-1000 Through Shaft Chucking System
Torque activated shaft-mounted solution for three inch cores. Click here
UC-3000 Bladder Chuck Adapters
Air-inflated adapters mount on a shaft to allow running multiple core sizes. Click here
LC-1000 Latching Roller Chuck
Ideal for smaller rolls and lightweight applications. Click here.


PC-4000 Specifications

PC-4000 Synopsis

The PC-4000 Pneumatic/Mechanical Torque Independent Core Chuck is designed to deliver constant gripping force to any core material regardless of torque magnitude or direction. It operates with a minimum of operator intervention, and is typically designed for constant air supply to enhance grip reliability.

This chuck offers maximum versatility in web tension control for modern unwind or rewind systems that feature non-conventional brake or drive systems. These systems can include surface drive, regenerative brakes, or turret systems that drive and then brake the roll. For machines with conventional braking and driving systems, consider the DF-2000 Torque-Activated Chuck

The PC-4000 mechanical chuck incorporates most of its basic features from our proven Pneumatic/Mechanical Lug Shaft design. This design has been proven in the demanding high-speed printing industry for over thirty years.


Please click here if you would like a quote on the PC-4000
