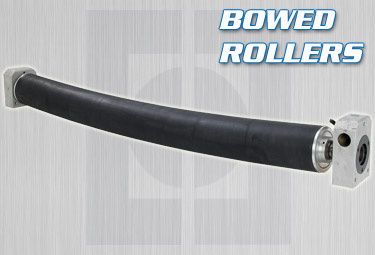

Bowed Rollers

More Info

Optimum Spreading Conditions

Position of Bowed Roller (Spreader Roller) in Process
bowed rollers
A = Diameter of Bowed Roller

Wrap Angle of Bowed Roller
Bowed Rollers Wrap Angle

Bowed rollers are used in
the paper, film, foil, and textile industries to spread the web material uniformly in order to eliminate creases or wrinkles.
In slitting operations, these rollers are used to prevent interweaving of material.


The standard fixed bow model with rubber cover
is suitable for many applications, but variable bow and other
models are also available. With the application information
that you provide on the back of this sheet, we will specify
the spreader roller that is right for you.

Standard Bowed Roller Dimensions (in.)
Other standard and custom sizes also available.
Model
Nominal Body Diameter
Minimal Body Length
Maximum Body Length
300
3
20
47
350
3.5
20
63
400
4
32
98
500
5
47
126
600
6
63
157
